Painted Finally
Tools i used so far

I just put this together so i could host my pics so i will work on it more when i finish with paint and no what the hell i am doing

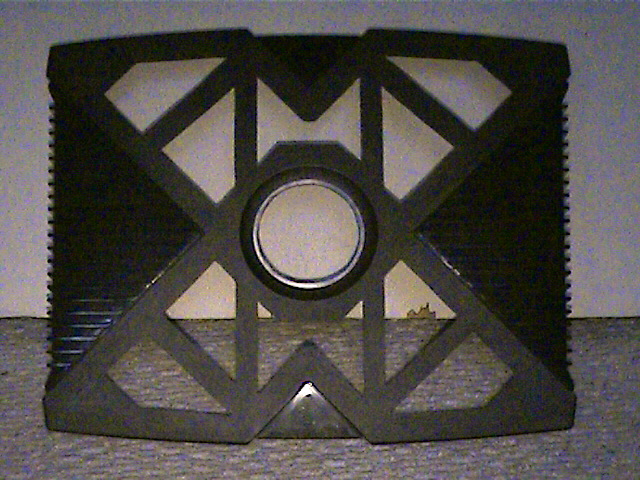

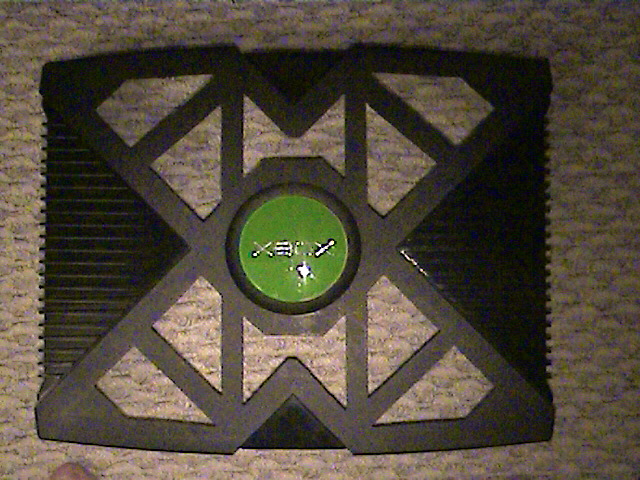

This is the design that i came up with and cut out with the rotozip

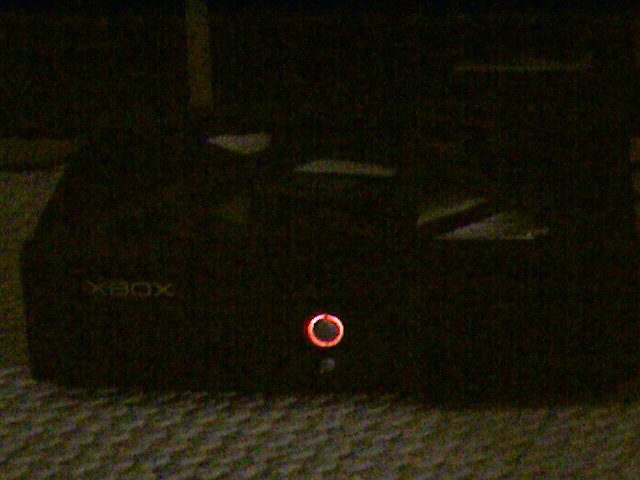

Red Front Led thanks to the tutorial at xbox-scene

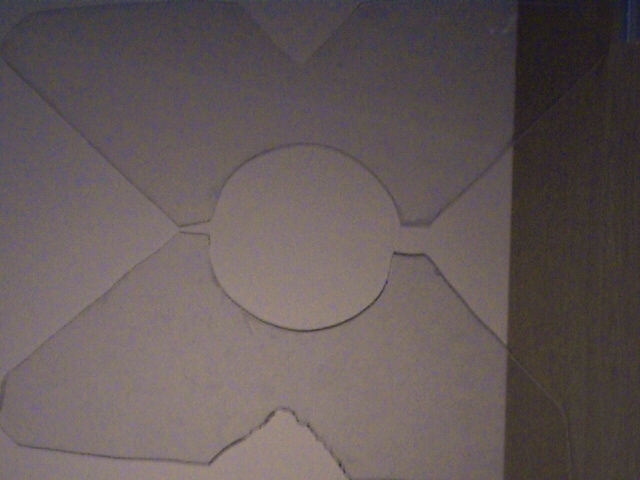

Here are the pieces of plexiglass i have cut out that will go under the xbox top

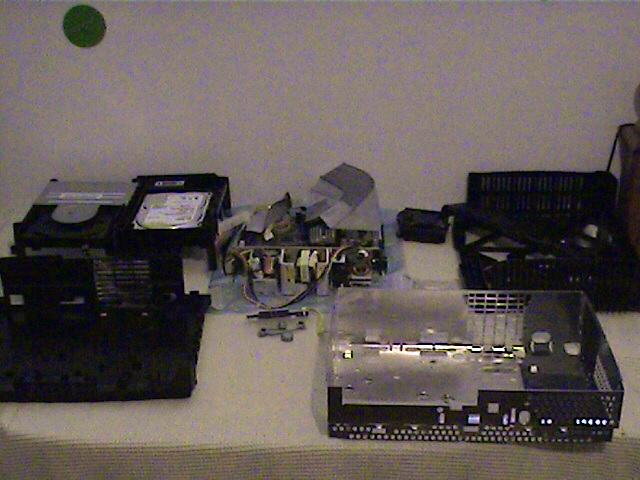

Just my xbox that i took apart to paint at about Midnight was pretty easy to take apart though


During Paint


What i play games on while my case is being painted

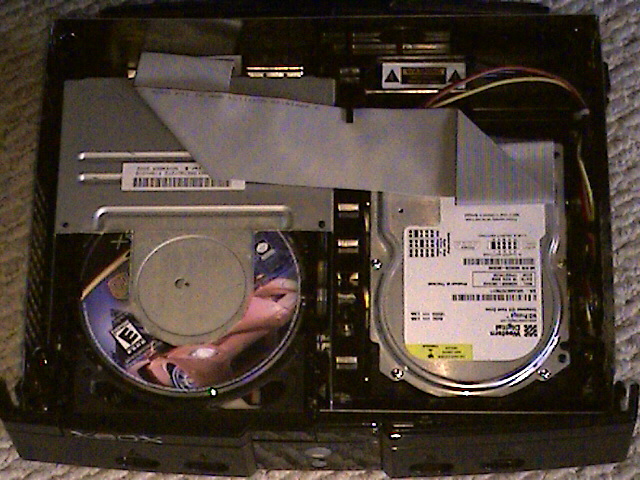

Just the inside with the dvd lid i cut

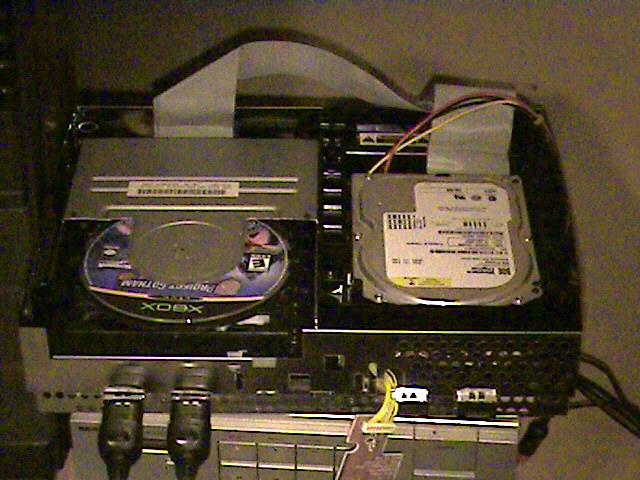

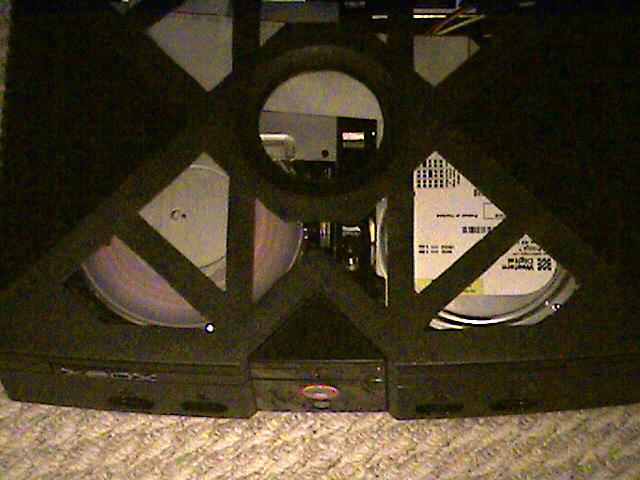

A pic with the top on and running


I took off the jewel by putting it in the freezer for about 1/2 hour and hit behind it with hammer one time and it popped right off really easy then cut the circle out with the rotozip

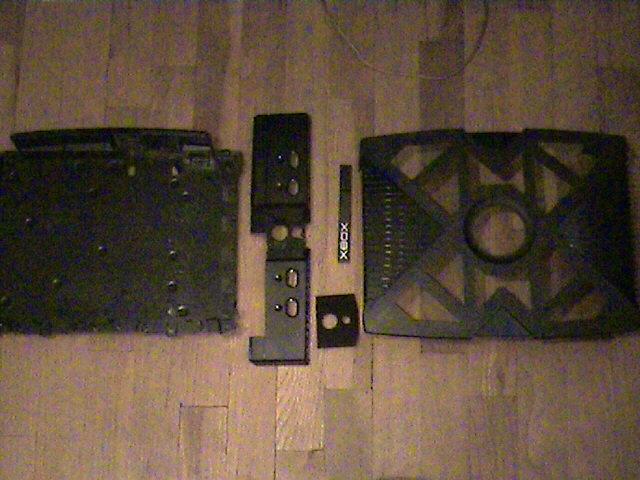

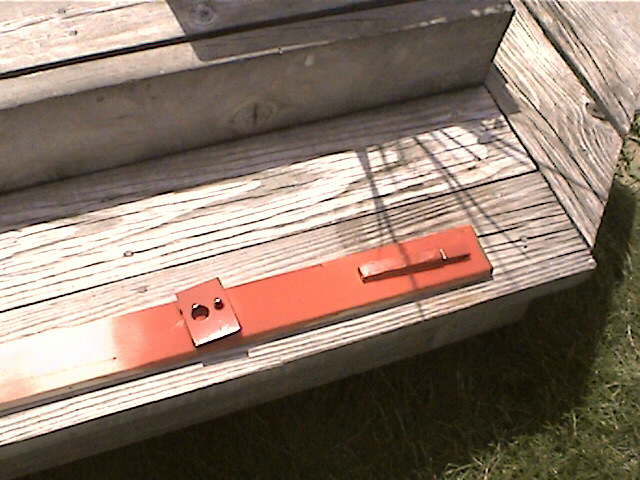

All the pieces i am going to paint layed out

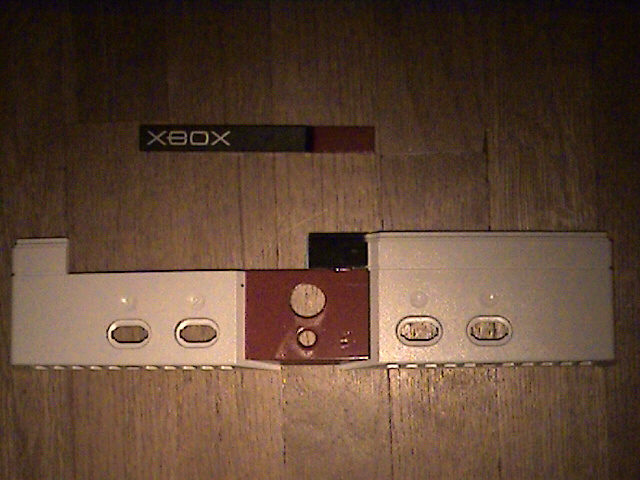

After one day of Painting not too far

I will have more pics up after i paint it i think i am doing a 2 color scheme red and white also i am putting a clear jewel on with red leds under that and red leds in the controller dongles so i still have alot to do
